platform
NISSAN Z34 CHASSIS
Each FXZ34 build starts with a carefully selected Nissan Z34 chassis in perfect factory geometry. Every shell undergoes inspection and alignment before removing unnecessary components to reduce weight. The chassis is then reinforced with an integrated 8-point roll cage, forming a rigid and reliable base platform
PRECISION
ENGINEERING
ENGINEERING
Chassis is set up on a custom jig and cut off all non-structural parts before welding begins
STRUCTURAL
INTEGRITY
INTEGRITY
Critical seams are reinforced and stitch-welded, increasing rigidity and stiffness
SAFETY
SYSTEM
SYSTEM
8-point roll cage offers FIA-level safety and transforms the chassis into a race-ready car
SYSTEM
INTEGRATION
INTEGRATION
suspension, drivetrain, and fuel system mounting points are pre-engineered for seamless assembly
Engine
THE MOST PROVEN DRIFT ENGINE SETUP

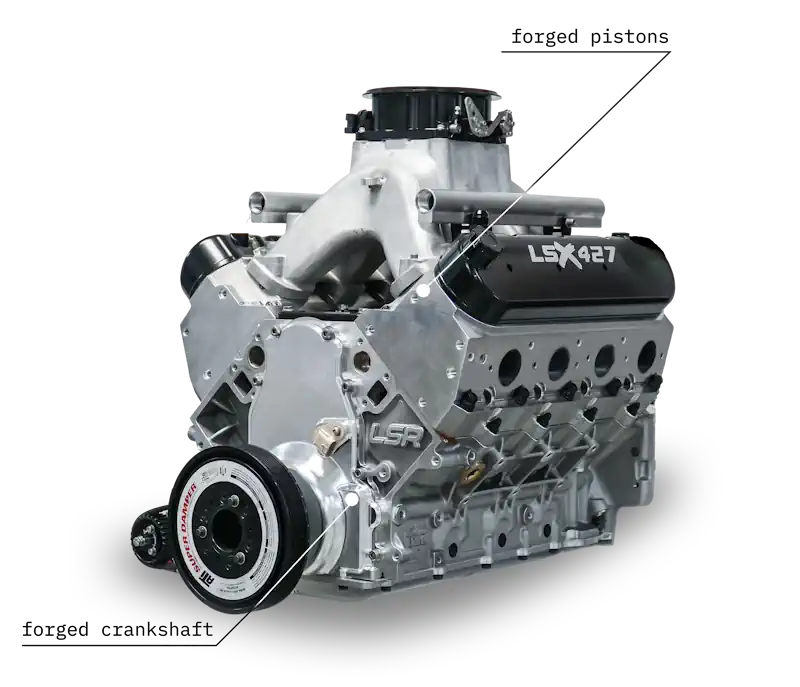

A time-tested motorsport setup is here! The high-performance LS engine was chosen for the FXZ34 for several key reasons:
- ENGINE reliability: engineered for high-boost applications, the LS7 consistently handles 7,500 RPM under extreme racing conditions
- parts availability: as the local standard in GCC region, LS setup ensures zero downtime & easy access to components
- SUPERCHARGER READINESS: optimized for forced induction,
- it provides stable performance under max cylinder pressure
SYSTEMS
NISSAN FXZ34
UNLOCK DRIFT POTENTIAL
click to watch
Rims
HERE'S WHERE
TRUE POWER BEGINS
TRUE POWER BEGINS

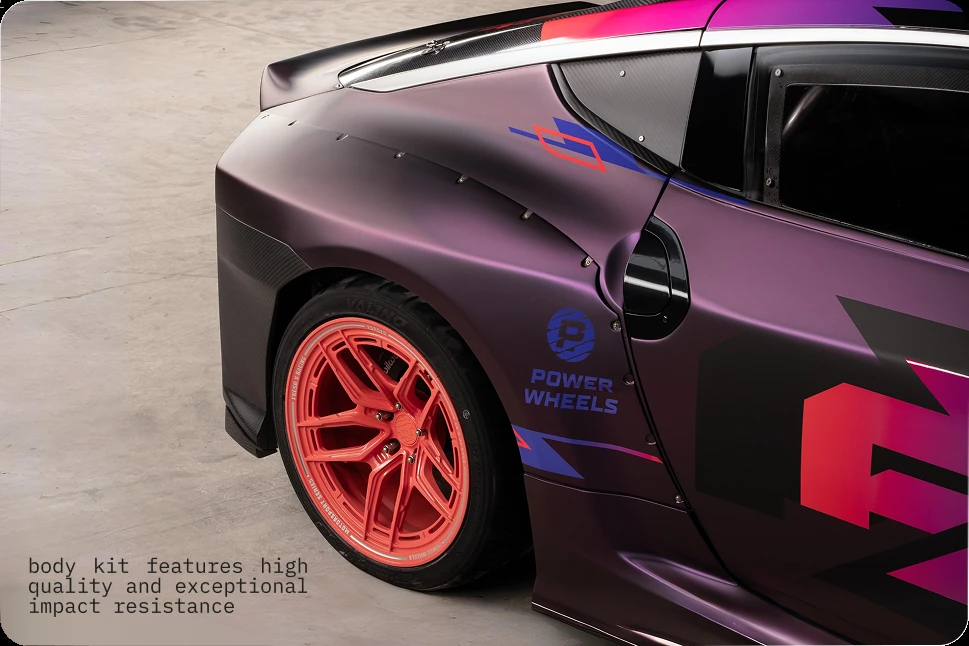

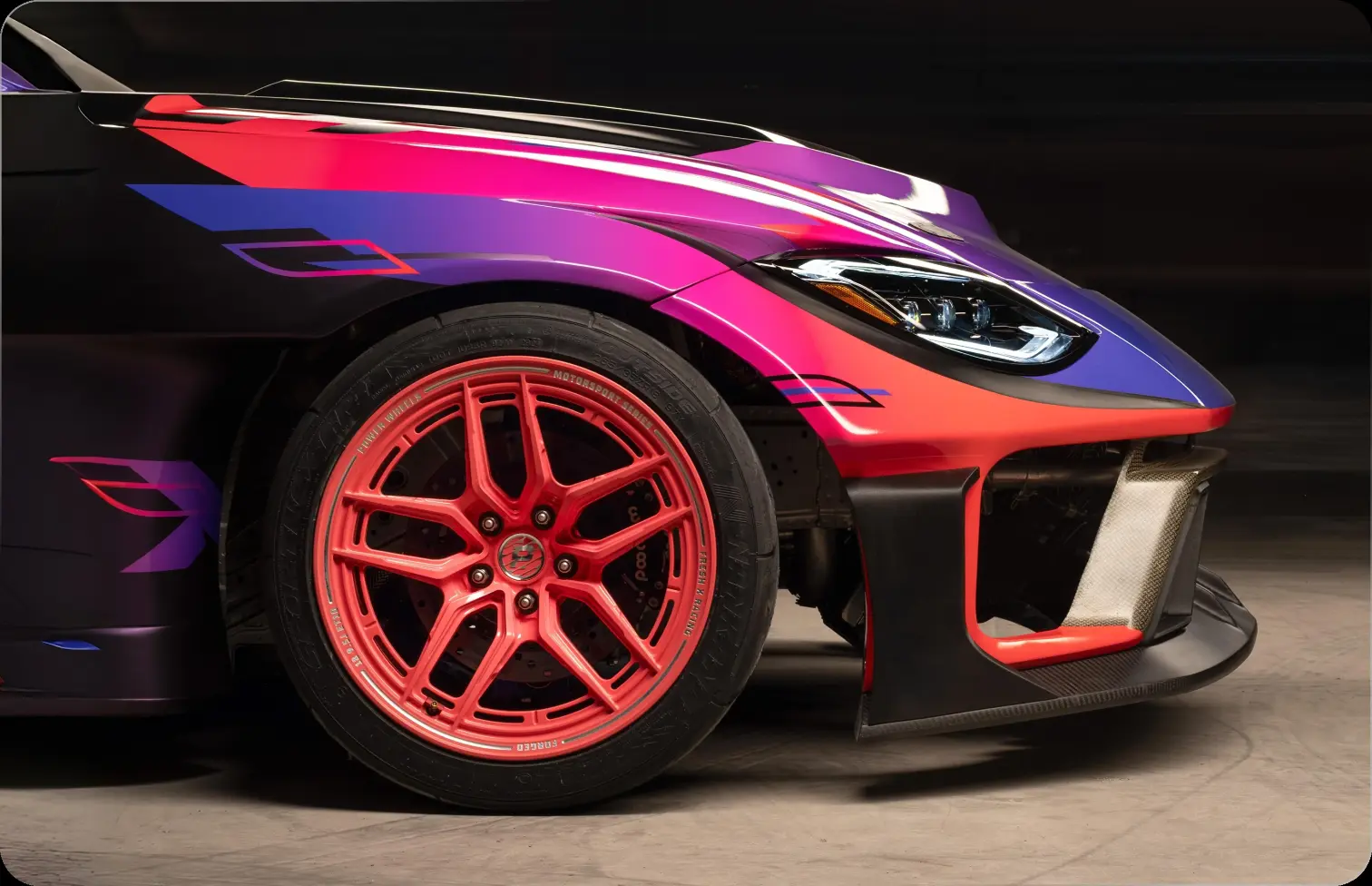

Power Wheels rims are crafted from forged aluminum, offering the perfect balance of strength and lightness essential for drifting. Each rim weighs under 8 kg and is engineered with precision to ensure durability, high performance, and a secure tire grip under extreme loads
NISSAN FXZ34
BORN TO WIN
KEEP EXPLORING FXZ34 LS7
| CHASSIS | |
| Component | Parameter |
| Base chassis | Nissan Z (Z34) |
| Model | 2020 |

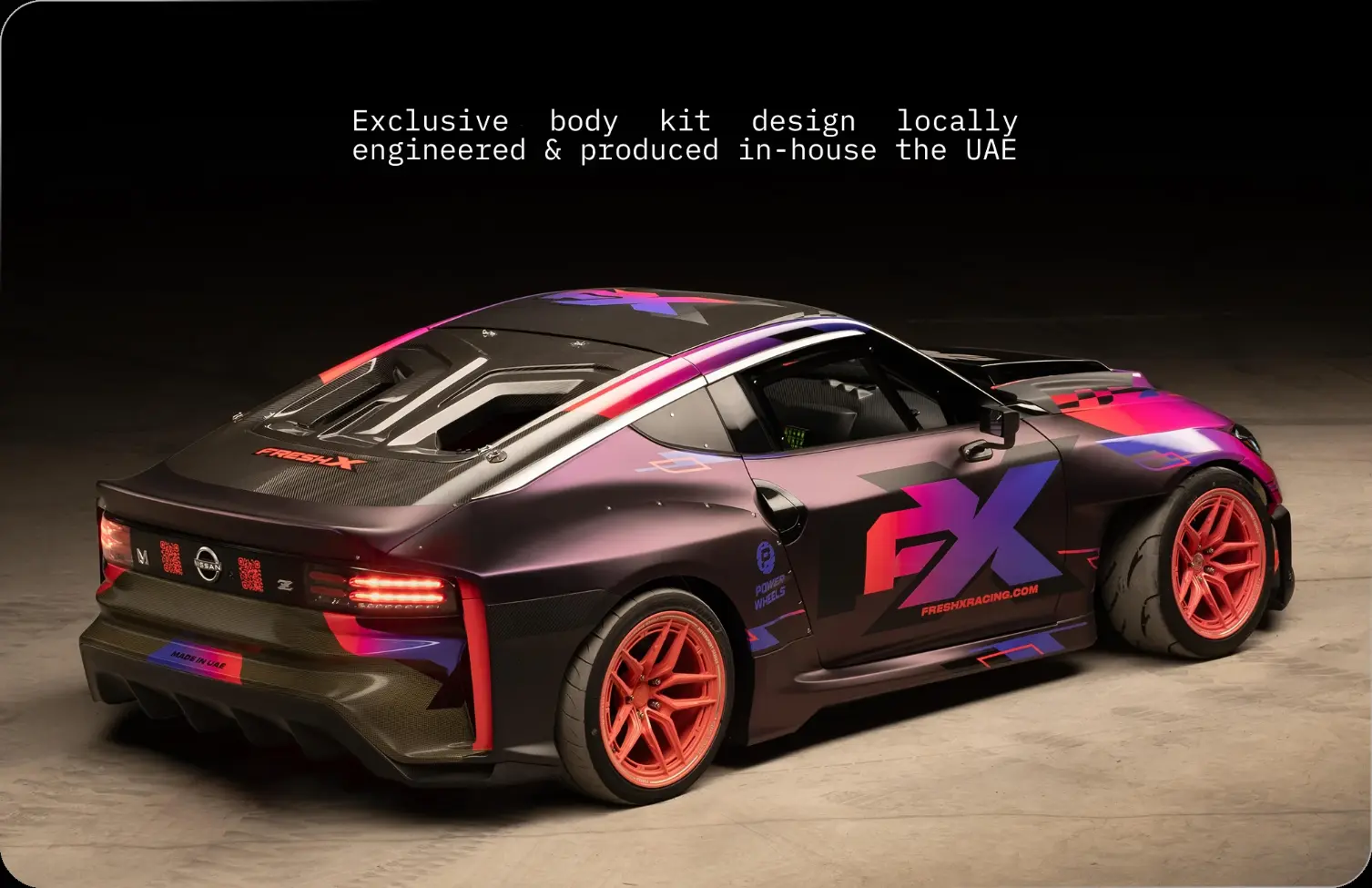

| FXZ34 carbon-kevlar bodykit | FRESH X |
| SAFETY | |
| Component | Parameter |
| FIA spec 8-point rollcage kit | FRESH X |
| Firewall kit rollcage edition | FRESH X |
| FIA spec racing seat | SPARCO |
| FIA spec racing harness | SHCROTH |
| FIA spec fire suppression system | OMP |
| Component | Parameter |
| ECU Link G5 VOODOO Pro | Link |
| Power distribution modules | MoTeC |
| Dash logger | MoTeC |
| Keypad | MoTeC |
| Dual cam telemetry | AIM |
| Milspec wiring harness | FRESH X |
| Battery | BRAILLE |
| Kill switch | Cartek |
| Sensors | EFI Hardware, Bosch, MoTeC, Honeywell |
| ENGINE SYSTEM | |
| Component | Parameter |

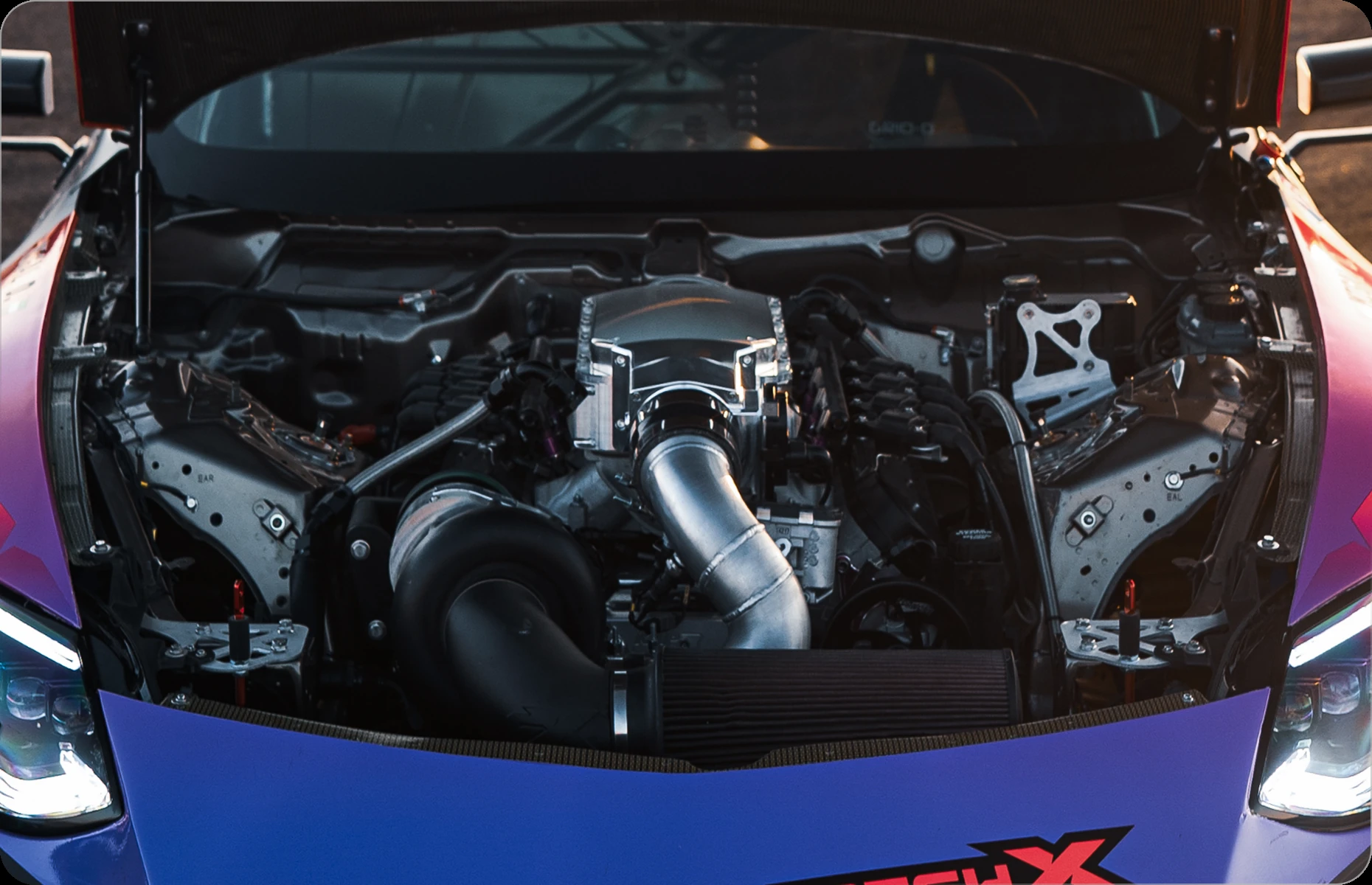

| LS7 V8 engine | Custom LS 427 |
| Engine volume | 7.000 cc |
| Compression ratio | 10:1 |
| Forced induction | ProCharger |
| Current power output | 909 hp / 1125 Nm |
| Maximum engine speed | 7500 RPM |
| 5-stage LS dry sump system | Dailey Engineering |
| Fuel type | Ethanol |
| Exhaust manifold | FRESH X |
| Intake manifold charge air cooler | Tick Performance |
| FXZ34 W2A cooling kit | FRESH X x CSF x SPAL |
| FXZ34 coolant radiator kit | FRESH X x CSF x SPAL |
| Coolant pump | Meziere |
| FUEL SYSTEM | |
| Component | Parameter |
| Fuel tank | Radium Engineering |
| FCST-X Fuel Cell Surge Tank | Radium Engineering |
| Fuel pressure regulator | Radium Engineering |
| Fuel injectors 1750 cc | Injector Dynamics |
| 525 lph pumps | Walbro |
| Component | Parameter |
| Front angle kit | Wisefab |
| Rear drop suspension kit | Wisefab |
| Coilovers | Feal Suspension / BC Racing |

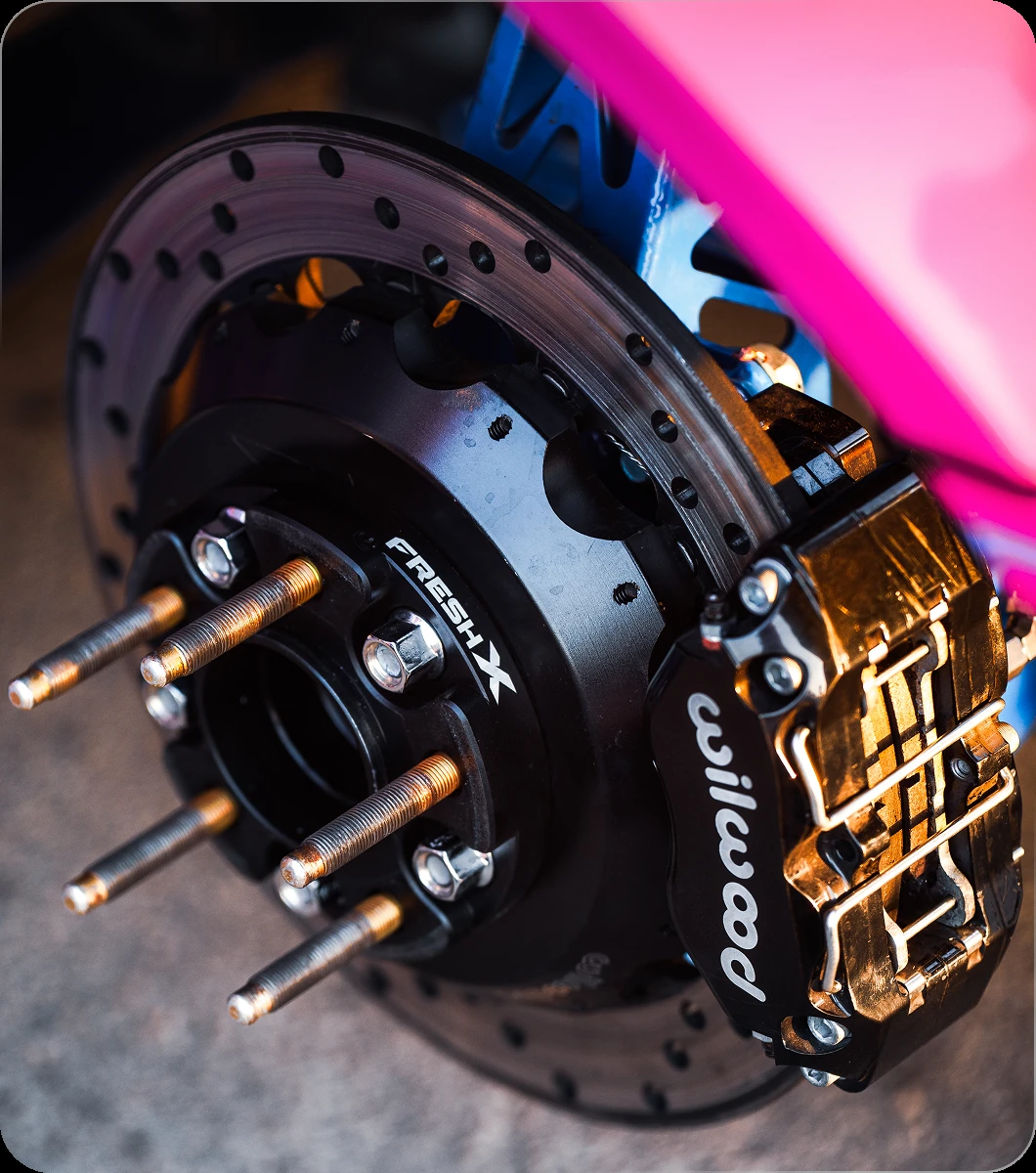

| Brake system | FRESH X x Wilwood |
| Steering rack relocation kit | FRESH X |
| Wheels | Power Wheels |
| Wheel spacers | FRESH X |
| Rear subframe for Quick Change diff | FRESH X |
| Rear subframe solid bushings | FRESH X |
| Steering column kit | FRESH X x Woodward |
| Overhung pedal assembly kit | FRESH X x Tilton |
| Component | Parameter |
| Sequential gearbox | SAMSONAS |
| Gearbox mount | FRESH X |
| Clutch kit (triple plate) | SPEC |
| Clutch release kit | FRESH X |
| Carbon fiber custom driveshaft | Drive Shaft Shop |
| Driveshaft safety loop | FRESH X |
| Quick change differential | Bulldog |
| Differential input flange | FRESH X |
| Axles | Wisefab |
| Base chassis | Nissan Z (Z34) |
| Model | 2020 |
| FXZ34 carbon-kevlar bodykit | FRESH X |
| FIA spec 8-point rollcage kit | FRESH X |
| Firewall kit rollcage edition | FRESH X |
| FIA spec racing seat | SPARCO |
| FIA spec racing harness | SHCROTH |
| FIA spec fire suppression system | OMP |
| ECU Link G5 VOODOO Pro | Link |
| Power distribution modules | MoTeC |
| Dash logger | MoTeC |
| Keypad | MoTeC |
| Dual cam telemetry | AIM |
| Milspec wiring harness | FRESH X |
| Battery | BRAILLE |
| Kill switch | Cartek |
| Sensors | EFI Hardware, Bosch, MoTeC, Honeywell |
| LS7 V8 engine | Custom LS 427 |
| Engine volume | 7.000 cc |
| Compression ratio | 10:1 |
| Forced induction | ProCharger |
| Current power output | 909 hp / 1125 Nm |
| Maximum engine speed | 7500 RPM |
| 5-stage LS dry sump system | Dailey Engineering |
| Fuel type | Ethanol |
| Exhaust manifold | FRESH X |
| Intake manifold charge air cooler | Tick Performance |
| FXZ34 W2A cooling kit | FRESH X x CSF x SPAL |
| FXZ34 coolant radiator kit | FRESH X x CSF x SPAL |
| Coolant pump | Meziere |
| Fuel tank | Radium Engineering |
| FCST-X Fuel Cell Surge Tank | Radium Engineering |
| Fuel pressure regulator | Radium Engineering |
| Fuel injectors 1750 cc | Injector Dynamics |
| 525 lph pumps | Walbro |
| Front angle kit | Wisefab |
| Rear drop suspension kit | Wisefab |
| Coilovers | Feal Suspension / BC Racing |
| Brake system | FRESH X x Wilwood |
| Steering rack relocation kit | FRESH X |
| Wheels | Power Wheels |
| Wheel spacers | FRESH X |
| Rear subframe for Quick Change diff | FRESH X |
| Rear subframe solid bushings | FRESH X |
| Steering column kit | FRESH X x Woodward |
| Overhung pedal assembly kit | FRESH X x Tilton |
| Sequential gearbox | SAMSONAS |
| Gearbox mount | FRESH X |
| Clutch kit (triple plate) | SPEC |
| Clutch release kit | FRESH X |
| Carbon fiber custom driveshaft | Drive Shaft Shop |
| Driveshaft safety loop | FRESH X |
| Quick change differential | Bulldog |
| Differential input flange | FRESH X |
| Axles | Wisefab |
FAQ
Test drives can be arranged in UAE on an individual basis depending on event schedule and location. Our team will contact you and discuss the exact details
Yes. A 50% prepayment option is available before starting the build or reserving an in-stock vehicle. Additional payment terms and methods can be discussed directly with our team at +971 50 425 4663
Worldwide delivery is available. Shipping time and cost are calculated based on your location and delivery method
Race support is available within the GCC region for customers who purchase the vehicle and require technical assistance during initial testing or competition. Terms are discussed individually. The FRESH X team maintains direct communication with the buyer to ensure full technical understanding and smooth setup
Yes. Beyond standard alignment and steering adjustments, several key parameters can be customized during the build-to-order process (not for pre-built units):
- body kit: each component is available in carbon-kevlar, carbon fiber, or FRP (full list available via link)
- body color
- rims and wheels
- suspension setup
- interior components: seat type, steering offset, handbrake position, etc.
